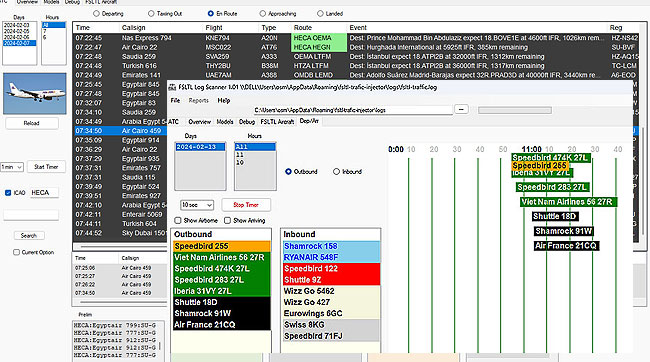

FSLTL LOG Scanner 1.01
Quick Guide
- Analyses the logs from FS Live Traffic Liveries
- See which AIG models are used
- See which models were not found
- Follow Flights from departure to take off
- Follow Flights from Approaching runway to parking at gate
- Unassigned Aircraft Parked by FSLTL
- Much more
- Free , Available Soon
| Double Click on Plane to view actual flight |

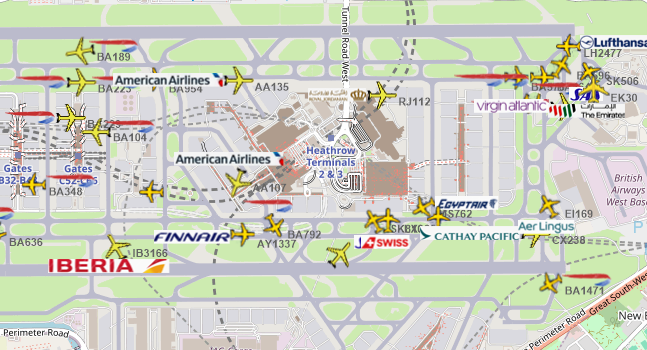

Live Traffic & Simbrief Flightplan
 |
| Route showing Real LiveTraffic which often matches FSLTL Traffic |
 |

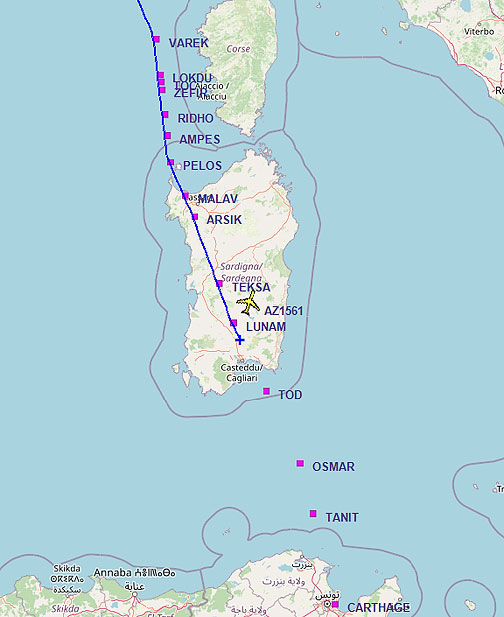

| Simbrief Flightplan Waypoints imported |

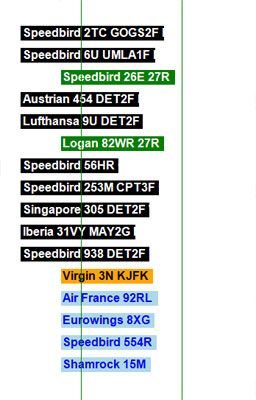

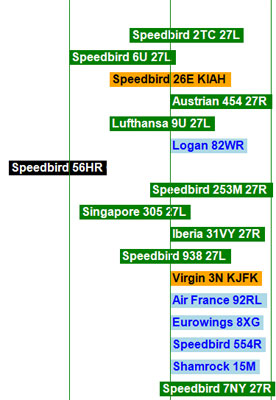

Timeline
 |
 |
| 9:20 am | 9:40 am |
This planes can be viewed and their progress followed on a timeline.

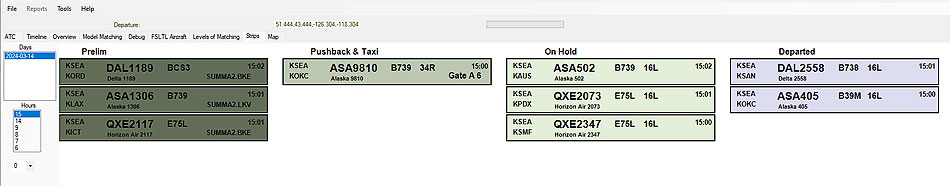

The Logs show several states before a plane is airborne:
Inbound
- Parked (Grey)
- Prelim : plane is given SID (black)
ie Speedbird 253M departs via CPT3F - Pushback and taxi to active runway (Green)
Active runway for Logan 82WR is 27R
Active Runway for Lufthansa 9U is 27L - Hold at runway (Orange)
Notice : Virgin 3 to KJFK is still holding ! - Depart (Blue)

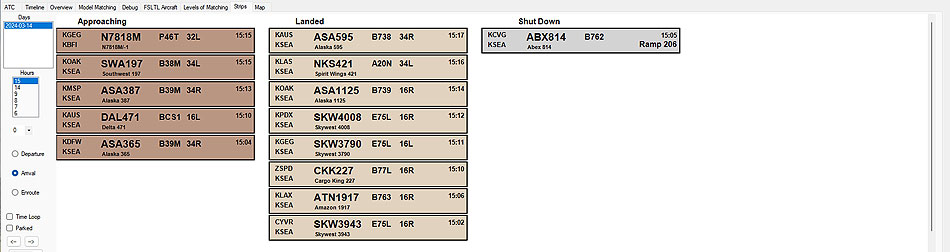

Outbound
- Overshoot (Red)
- Approaching (Blue)
- Landed (Cream)
- Shut down (Grey)
Enroute
This is an example of plane from being enroute to landing at Gatwick
- EZY72GL/8690 Enroute London Gatwick at 5875ft IFR, 25km remaining
- EZY72GL/8690 Enroute parked by sim as close destination
- EZY72GL/8690 Enroute London Gatwick at 4925ft IFR, 28km remaining
- EZY72GL/8690 Approach 26L
- EZY72GL/8690 Landed at 26L taxi to Gate 572
- EZY72GL/8690 Parked at London Gatwick IFR destination
 |
| Departures |
 |
| Arrivals |
Callsigns
It appears that at airports ATC uses a mixture of a standard call sign followed by part of the flightnumber, ie
When departing DLH7KG has a call sign: Lufthansa 7KG
When en route the call sign appears to be Lufthansa 2292
This number is 'processed' in the logfile, if a number was found.
M Codes
These define how well an aircraft has been matched. Most of it is known.
Types: ie A320
Proper Flightnumber : Some flight numbers are generated using the plane's Registration Number.
Multiple Iatas :CFE - BAW
| M Code | Type | Proper Flight Number | Airline & Model Description | Reg in Title | iata |
| 1 | y | y | y | y | y |
| 2 | y | y | y | x | multiple |
| 3 | y | y | y | x | y |
| 4 | y | x | y | x | y |
| 5 | y | y | likely match | x | multiple |
| 6 | y | y | likely match | y | multiple |
| 7 | ? | ? | ? | ? | ? |
| 8 | dif subtype | y | y | x | y |
| 9 | x | y | y | x | y |
| 10 | x | y | y GA | x | y |
| 11 | y | x | General | x | y |
| 12 | x | x | General | x | y |
