GSX Mapper is designed for simmers who want the fun of GSX

You own GSX but gave up on profile editing because the workflow is too fiddly, technical, or time‑consuming.
You just want to enjoy the show — passengers boarding and deboarding at any airport, from any stand, following routes you create.
You want to design your own pushback routes quickly and visually, without wrestling with config files.
You love seeing life on the apron — walkers at every stand, and yes, even wandering across rooftops for a bit of extra fun.

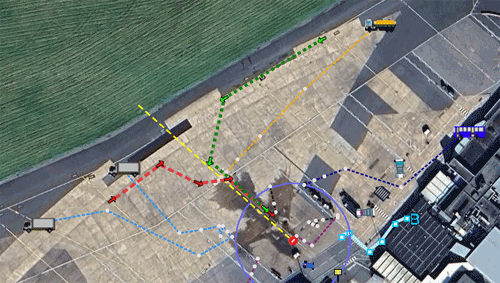

Now you can visualise GSX profiles and plot/edit any data that can be represented on a map.

Quickly compare different profiles for the same airport.
Quickly pick your departure / arrival stands
Easily select the most detailed parking slot with boarding and deboarding and no jetways
Create your walking/boarding and deboarding routes within seconds
Avoid jerky turns by adding extra points when making a turn.

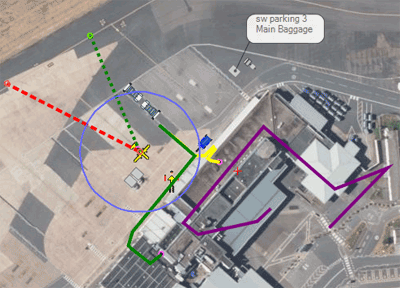

Gate A 50 at EDDF with right and left pushbacks and a line for walkers(purple)

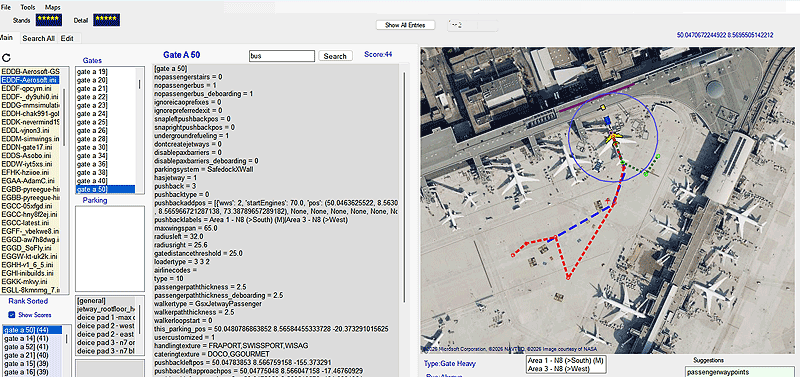

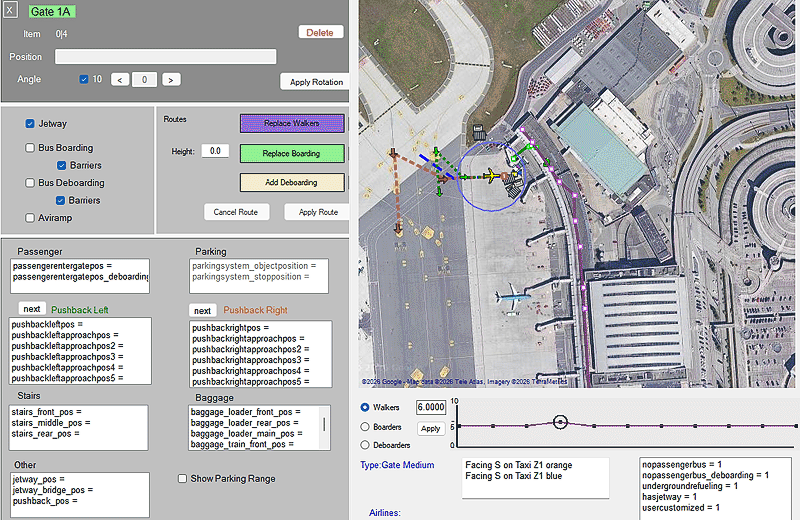

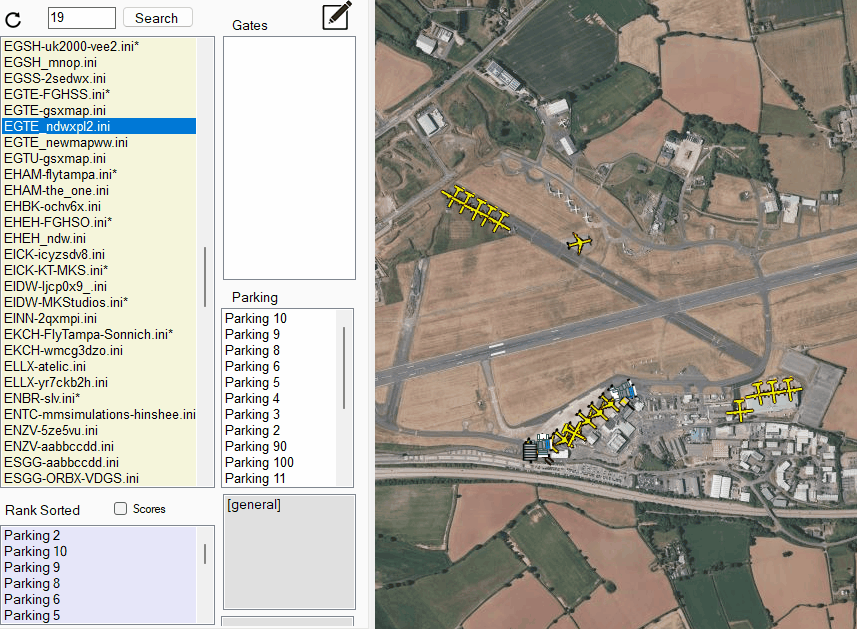

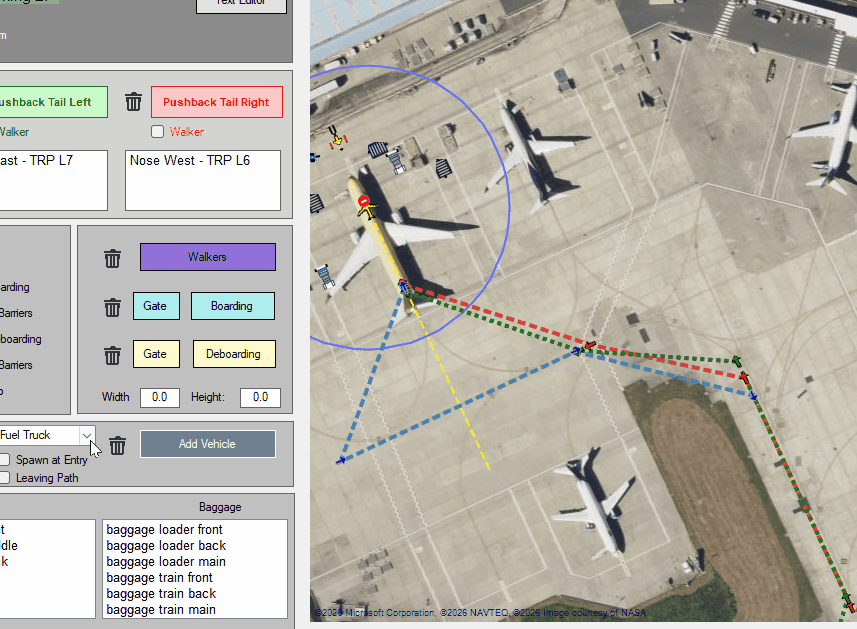

Editing In GSX Mapper

Quick Overview

Click on each gate/parking.de-icing slot to check out what features have been included or omitted.
The contents of each gate/parking areas has been graded making it easier to identify the most detailed slots .
Left and Right Pushbacks are easily identified.
Passenger boarding and deboarding routes are clearly marked in green and yellow respectively - see below
Walking passengers follow a purple line see below.

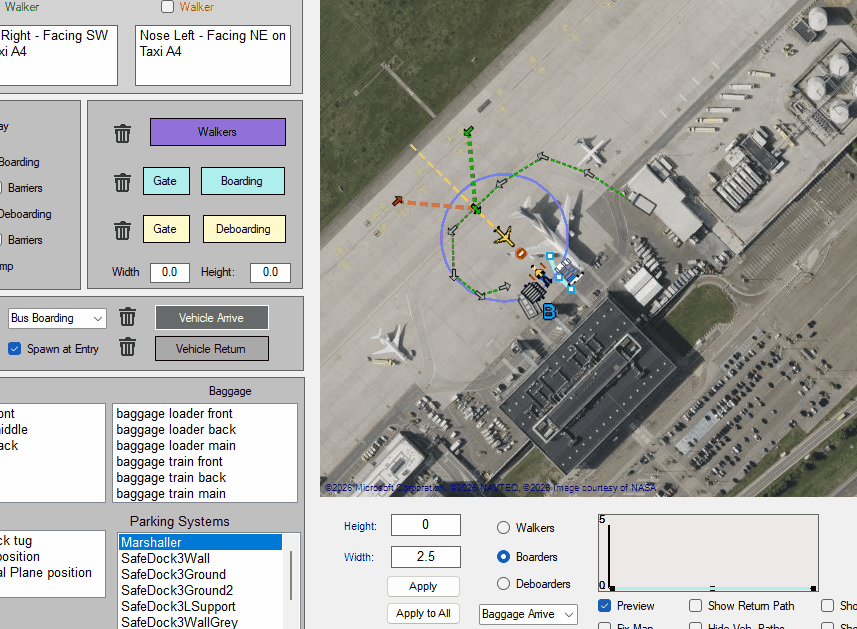

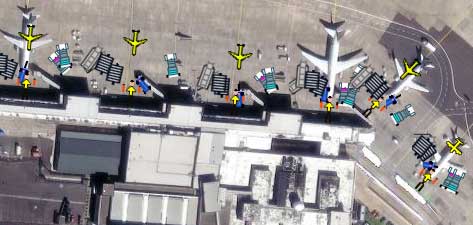

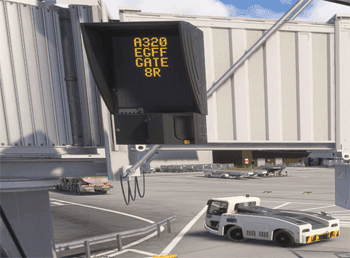

See where the Marshaller has been positioned.
Check out the pushback labels.
Create your own pushback routes . Once created , click and drag waypoints to finalise position.
Create your own boarding and deboarding
Create your own walkers routes
And much more.

Which Gate should I select?

GSX Mapper is ideal to select the best GSX gate or parking slot.
It rates each parking slot and shows whether it includes a jetway.

Profile: EHAM

Grading

Each parking slot is graded based on the level of detail contained in its GSX profile.
When you load a profile, you can immediately see how detailed it is thanks to the grading system.
The grading also reflects how many gates or parking positions include precise coordinate data for their placement.

Suggestions

It offers targeted suggestions to help enhance the accuracy and completeness of each slot’s data.

Editing Data

Positions for objects or routes can be adjusted at any time, without entering the flight simulation itself.

	When Walkers and Passengers paths cross, GSX produces unexpected results. In addition, this profile did not include an essential: 'passengerentergatepos =' Passengetentergate scan only be placed in locations which contain sufficient data to make it valid for GSX. If you do decide to add it ,GSX throws an error with an 'isolated parking' warning causing the whole profile to become inoperative! You can still add Passenger waypoints , BUT with out an entry gate the passengers get very confused ! Tip To check if your profile is 'running' , add a a few walkerwaypoints as they are not affected . Walkers appear as soon as you've restarted 'Couatl' in GSX

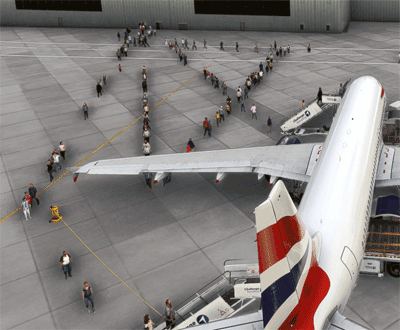

Playing around with boarders and walkers

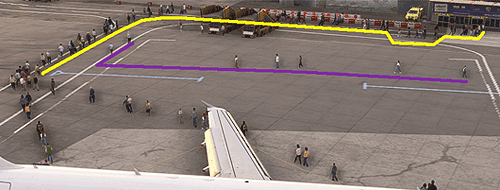

Walkers (purple) & Deboarding passengers (yellow)

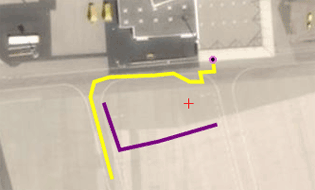

Start at a point beyond left wing tip of plane then draw points until 2 - 5 m from Deboarding Gate - lines' on tarmac can help you!

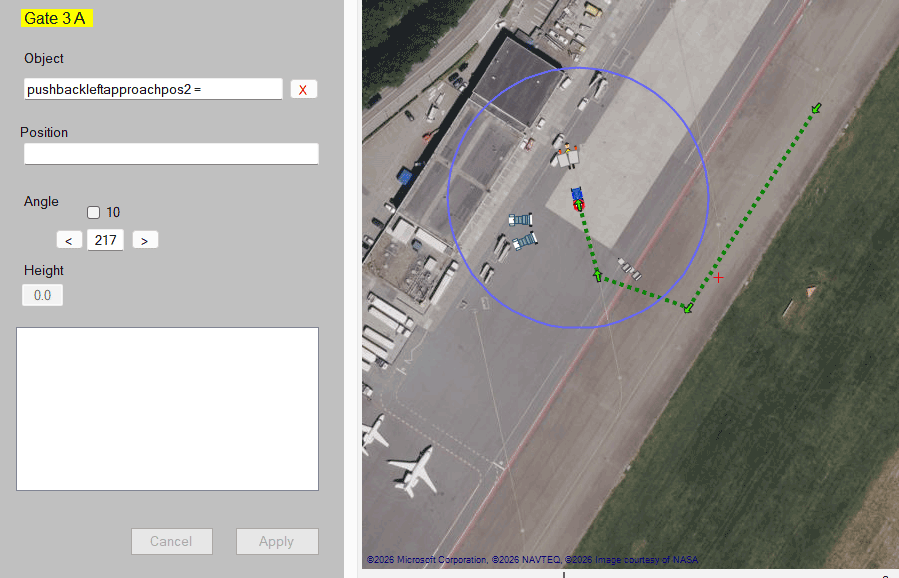

Pushbacks Left/Right

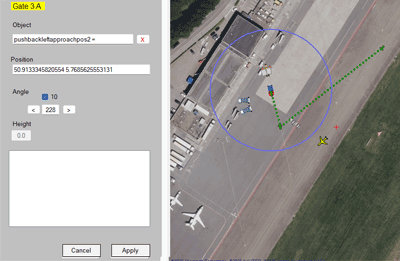

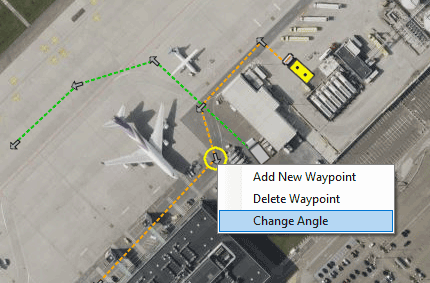

Click < > buttons to adjust angle	Click Apply and save Profile

Some general observations regarding GSX Profiles

Because GSX insists on using Navdata when validating parking positions, many—if not most—GSX profiles become unreliable in less than a year. As soon as the Navdata changes, the majority of profiles, regardless of airport size, end up with parking mismatches.
This makes it largely pointless to invest time creating detailed pushback routes or custom logic if GSX no longer recognises the parking spot itself.
Any profile that relies on this_parking_pos or parkingsystem_stopposition is especially vulnerable, because these values are tied directly to Navdata and will break as soon as the data updates.
The irony is that GSX is perfectly capable of locating your aircraft without this_parking_pos. In fact, the most reliable profiles are the ones that use the fewest objects. The more objects you add, the higher the risk that GSX will reject the stand entirely.
A robust profile should start with only the essentials—typically passengerentergatepos—and build from there.
The good news is that routes (boarding, deboarding, pushback, walkers) are safe. They are not affected by Navdata changes and can be added without risking stand recognition.

Improved Instructions for Creating and Refining GSX Parking Profiles

How to Map all 'valid' parking stands

With GSX Mapper you can ceate a genetal profile for all airports included in FS2020/24 based on data stored in flightsim.

Just specify an ICAO code and click create. Import this into the GSX location reserved for profiles

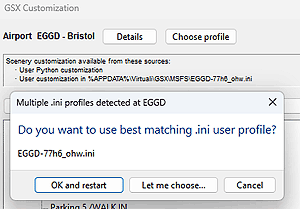

Click Customize Airport Positions and at the top select choose profile to ensure its using the newly created profile.

GSX will automatically read any profile related to your current airport when launching the flightsim.

However, you may have to persuade it to use your profile:

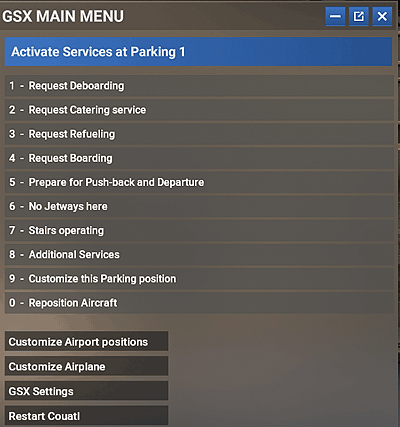

If you are in the flightsim itself, click GSX and from within the menu click Restart Couatl - see image below

In GSX Mapper:

Add pushbackrightpos and pushbackleftpos by clicking where the end of each pushback should be.
These are endpoints, not the start of the pushback.
Save your work — this enables GSX Mapper to zoom correctly into the stand.
Then add pushbackleftapproachpos and pushbackrightapproachpos.
At many airports you can see the painted centreline where the aircraft would sit.
Do not add a this_parking_pos entry.

Add passengerentergatepos (and _deboarding if needed).
However, GSX can be very unforgiving if you place a gate anywhere where you see a building ,implying that it must rely on some data . If it refers to an error and the idea of opening its log, the only way to avoid the loop is to take out the gatepos entry!
Check your bus settings:
- For boarding routes (green): add nopassengerbus = 1
- For deboarding routes (yellow): add nopassengerbus_deboarding = 1

Add a boarding route (yellow).
Imagine the aircraft parked on the stand.
Place your first point roughly halfway along the left wingtip, slightly beyond it.
Then click your way toward the terminal gate.
Finish the route near the gate entrance.

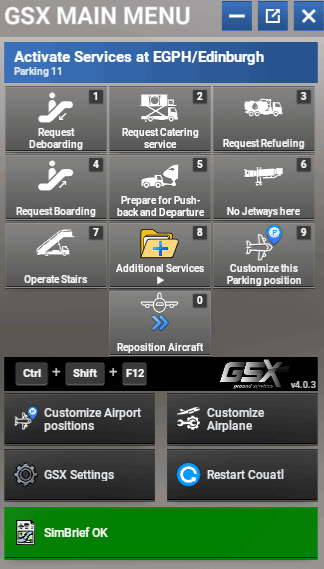

Select Customize Airport Positions to enter GSX Editor

Select Restart Couatl to force GSX to reload your profile.

'This Parking is Isolated'

When you hear this audible warning, it means that one or more coordinate entries in your profile do not match the Navdata

To resolve ths issue:

Check all coordinate based entries to a parkingsystem .ie parkingsystem_objectposition = etc which includes coordinates.
Review anything in your profile that references a parking system or aircraft position, such as:'this_parking_pos'
After correcting any coordinates, save the updated profile.
Load couatladdons.ini and REMOVE reference to your profile - more than likely near the bottom of the file.
Press ESC and select END Flight
Reposition yourself at the last gate/ramp
You will here This Parking is Isolated' when reentering the flightsim but your profile should load properly. If not , check the coordinates of anything related to the plane - ie stop position etc .
Stairs,Baggage,Walkers , Boarders, Deboarders, Pushback routes should not cause the 'error' message.
