GSX Mapper free & available soon.

Designed to visualise GSX profiles and plot any data that can be represented on a map.

  • Quickly compare different profiles for the same airport.
  • Quickly pick your departure / arrival stands
  • Easily select the most detailed parking slot with boarding and deboarding and no jetways
  • Create your walking/boarding and deboarding routes within seconds
  • Avoid jerky turns by adding extra points when making a turn.

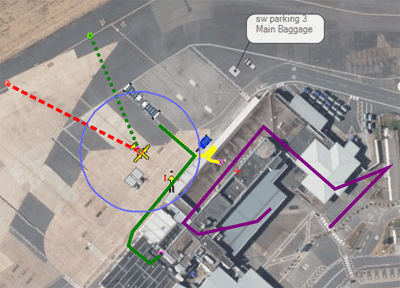

Gate A 50 at EDDF with right and left pushbacks and a line for walkers(purple)

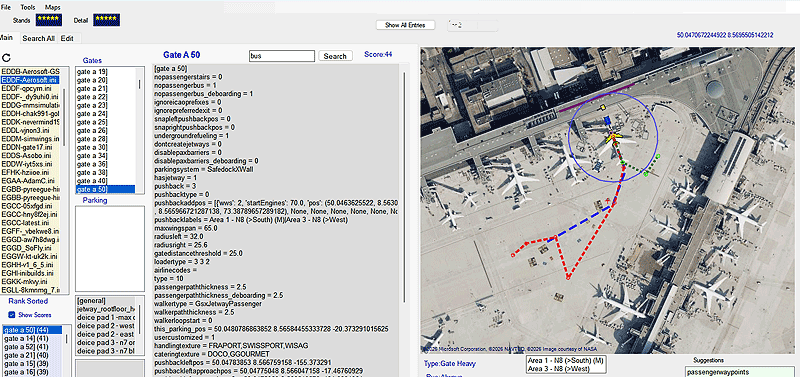

Quick Overview

  • Click on each gate/parking.de-icing slot to check out what features have been included or omitted.
  • The contents of each gate/parking areas has been graded making it easier to identify the most detailed slots .
  • Left and Right Pushbacks are easily identified.
  • Passenger boarding and deboarding routes are clearly marked in green and yellow respectively - see below
  • Walking passengers follow a purple line see below.
  • See where the Marshaller has been positioned.
  • Check out the pushback labels.
  • And much more.

Which Gate should I select?

GSX Mapper is ideal to select the best GSX gate or parking slot.
It rates each parking slot and shows whether it includes a jetway.

eham

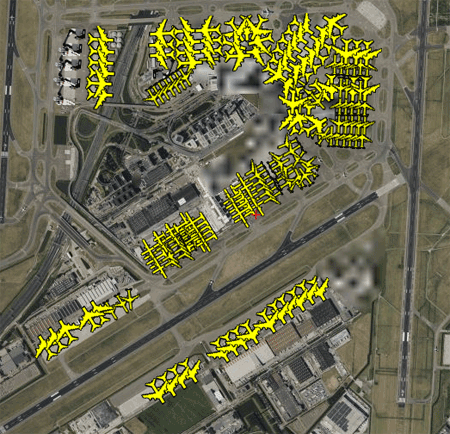

  Profile: EHAM

Grading

  • Each parking slot is graded based on the level of detail contained in its GSX profile.
  • When you load a profile, you can immediately see how detailed it is thanks to the grading system.
  • The grading also reflects how many gates or parking positions include precise coordinate data for their placement.

Suggestions

It offers targeted suggestions to help enhance the accuracy and completeness of each slot’s data.

 gsx mapper 2

Editing Data

Positions for objects or routes can be adjusted at any time, without entering the flight simulation itself.

eham

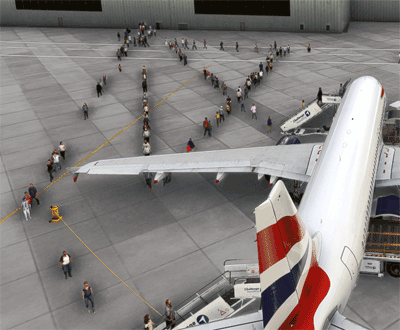

When Walkers and Passengers paths cross, GSX produces unexpected results.

In addition, this profile did not include an essential:

'passengerentergatepos ='

Passengetentergate scan only be placed in locations which contain sufficient data to make it valid for GSX.

If you do decide to add it ,GSX throws an error with an 'isolated parking' warning causing the whole profile to become inoperative! You can still add Passenger waypoints , BUT with out an entry gate the passengers get very confused !

Tip

To check if your profile is 'running' , add a a few walkerwaypoints as they are not affected.





Top Tip

Within FSX, create a new profile by selecting all gates and parking and click / unclick Marshaller then click Apply.

This trick creates a new profile. Click Refresh button to view new profile and start adding routes

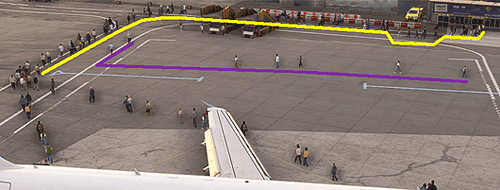

Deboarding passengers & walkers
walkers & deboarders

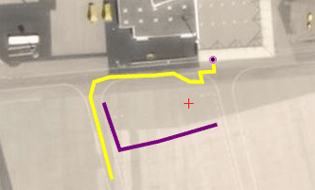

Place one end of route2- 5 m from Deboarding Gate, the other beyond left wing tip of plane
